Stab Proof Plates Material
Model: SZ FC-2-S1
Density: 290±20 g/m2
Protection Standards: NIJ STD–0115.00/UK HOSDB
Protection level: level 1/KR1+SP1 (Blade+Spike)
Thickness: 0.31±0.01 mm
Size: 1200*2380 mm
Base material: Aramid Woven Fabric
Protect against Strike Energy: 24J & 36J (E1&E2)
Color: Yellow
Description
Key points in Mind While Purchasing Stab proof vest
1. Fit matters (the functional stab proof material inside): It is crucial to get the right fit because poorly fitting armor can increase the risk of injury.
2. Quality counts: Always purchase from a reputable and trustworthy manufacturer. Shenzhou solely major in developing and producing stab proof material for 14 years.
3. Ratings matter: Make sure you choose the right protection level for your needs. You can follow stab proof standards of USA NIJ 0115.00 or UK HOSDB.
4. Maintenance: Proper care and maintenance of your vest can extend its lifespan and effectiveness.
The SZ FC-2-S1 spike proof body armour polymer sheets is designed to be against 24J & 36J (E1&E2) of level 1/KR1+SP1 of NIJ and HOSDB standards. Besides blade stabbing test and Spike stabbing test would be stopped at this level. And only 5.8kg/m2 highlighted the stab proof solution's best advantage at light weight. It would be the best choice when you need level 2 stab proof vests.
FC-2-S1 Stab proof performance
|
Model |
HOSDB KR1 |
HOSDB KR1+SP1 |
HOSDB KR2 |
HOSDB KR2+SP2 |
HOSDB KR3 |
HOSDB KR3+SP3 |
||||||
|
NIJ 0115.00 level 1 (Blade) |
NIJ 0115.00 level 1 (Blade+Spike) |
NIJ 0115.00 level 2 (Blade) |
NIJ 0115.00 level 2 (Blade+Spike) |
NIJ 0115.00 level 3 (Blade) |
NIJ 0115.00 level 3 (Blade+Spike) |
|||||||
|
Strike Energy |
24J & 36J |
33J & 50J |
43J & 65J |
|||||||||
|
FC-2 |
Area density (kg/m2) |
Ply |
Area density (kg/m2) |
Ply |
Area density (kg/m2) |
Ply |
Area density (kg/m2) |
Ply |
Area density (kg/m2) |
Ply |
Area density (kg/m2) |
Ply |
|
5.22 |
18 |
5.8 |
20 |
6.38 |
22 |
6.96 |
24 |
6.96 |
24 |
8.12 |
28 |
|

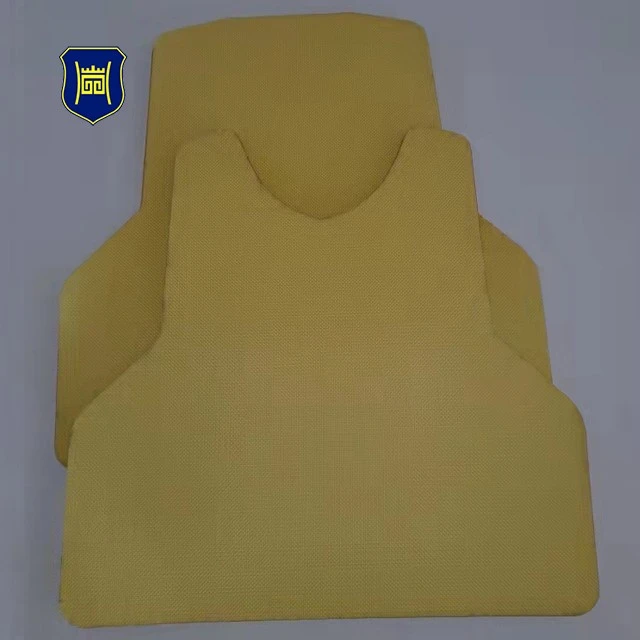

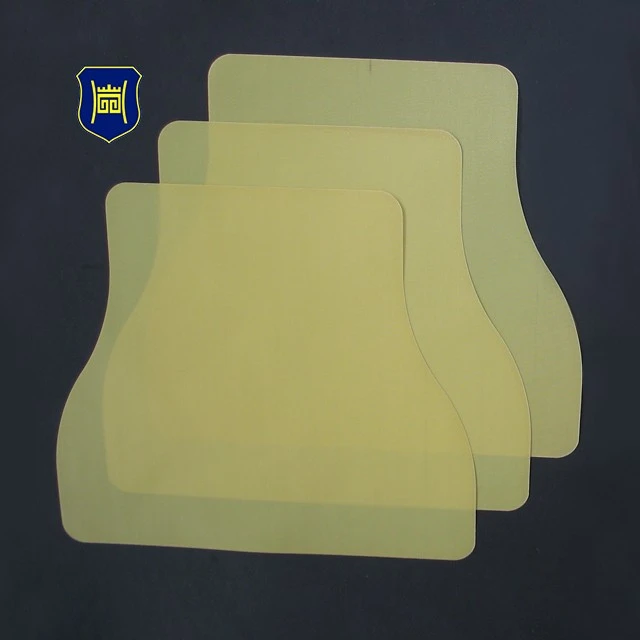

Photos & Videos of SZ FC-2 stab proof armor fabric
Why choose us?
* ISO certified quality management system.
* Inquiry/email about Pre-sale, sale, after-sale will be replied within 24H.
* Strong technical supports to achieve any customized requirements.
* We guarantee that you'll get Higher-quality products from us.
* Samples will be sent to you at the earliest.
FAQ
Q: What types of bulletproof and stab proof material do you supply?
A: Our bulletproof and stab proof materials are combined by UHMW PE UD and our patented FC series stab proof material. With different constructions of combination between the two kinds of materials, we can supply the bulletproof and stab proof panels/vests that comply with any anti bullet and anti-stab protection levels.
Q: What is FC stab proof material?
A: Shenzhou FC stab proof materials are a type of polymer materials that are made of aramid woven fabrics with special craft that are designed to stop and disperse the forces generated by sharp objects like knives and needles. The FC stab materials follows main stab resistant standard on the world, including and not limited to USA NIJ 0115.00, UK HOSDB, GERMAN VPAM, China GA68-2019.
