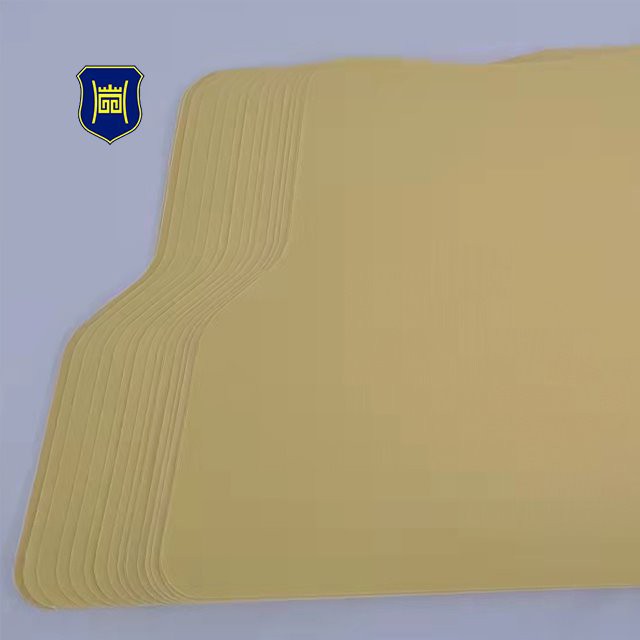

Stab Resistance Composite
Model: SZ FC-1Y-S2
Density: 385±20 g/m2
Protection Standards: NIJ STD–0115.00/UK HOSDB
Protection level: level 2/KR2+SP2 (Blade and Spike)
Thickness: 0.39±0.01 mm
Size: 1200*2380 mm
Base material: Aramid Woven Fabric
Protect against Strike Energy: 33J & 50J (E1&E2)
Color: Yellow
Description
The SZ FC-1Y-S2 Stab resistance composite complies with NIJ STD–0115.00 level 2 or UK HOSDB KR2+SP2, protect against strike energy of 33J and 50J (E1 and E2 overtest). Its excellent cut resistance, stab resistance, and puncture resistance properties make it ideal for individuals working in close proximity to sharp objects, such as police officer, security guard, bouncer, or a regular civilian.
As the data sheet of FC-1Y showed, only 19 layers will be enough for the Level 2, that make the resulted protection panel would be only 7.315kg/m2, 7.41mm around thickness. Our SZ FC-1Y-S2 Stab resistance composite fabric is an excellent option for anyone looking for added safety in high-risk situations.
FC-1Y-S2 Stab proof performance
|
Model |
HOSDB KR1 |
HOSDB KR1+SP1 |
HOSDB KR2 |
HOSDB KR2+SP2 |
HOSDB KR3 |
HOSDB KR3+SP3 |
||||||
|
NIJ 0115.00 level 1 (Blade) |
NIJ 0115.00 level 1 (Blade+Spike) |
NIJ 0115.00 level 2 (Blade) |
NIJ 0115.00 level 2 (Blade+Spike) |
NIJ 0115.00 level 3 (Blade) |
NIJ 0115.00 level 3 (Blade+Spike) |
|||||||
|
Strike Energy |
24J & 36J |
33J & 50J |
43J & 65J |
|||||||||
|
FC-1Y |
Area density (kg/m2) |
Ply |
Area density (kg/m2) |
Ply |
Area density (kg/m2) |
Ply |
Area density (kg/m2) |
Ply |
Area density (kg/m2) |
Ply |
Area density (kg/m2) |
Ply |
|
5.39 |
14 |
6.16 |
16 |
6.545 |
17 |
7.315 |
19 |
7.315 |
19 |
8.47 |
22 |
|
Photos & Videos of SZ FC-1Y stab proof clothing fabric
Why choose us?
* All materials, whether stab proof materials, or bulletproof and stab proof materials are packaged with care to ensure that they reach our customers in good condition. We use durable materials to protect our products from damage during transport.
* 14-years Experiences in the Stab Resistance Industry: We've been involved in the development and production of stab-proof materials for over a decade. We have a team of experts with extensive knowledge in the field, which enables us to provide high-quality products and services to our customers.
FAQ
Q: What are the Differences between Stab Proof Vests and Stab Proof Panels?
A: Stab proof vests are designed to be worn like regular clothing, or covert styles that usually under a shirt or jacket. They cover the chest, back, and sides of the torso, and provide the wearer with full range of motion and flexibility. Stab proof panels, on the other hand, are usually inserted into outer carriers of a vest, bags, backpacks, or other protective gears. Both of them are specifically designed to protect against knife attacks or sharp object penetration.
Q: What is bulletproof and stab proof material?
A: Bulletproof and stab proof material is a type of protective material for bulletproof and stab proof vest that designed to protect the wearer from bullets and sharp objects like knives blades and spikes.
